CNC Machining Processes Comparison: How to Choose Between Milling, Turning, 3-Axis and 5-Axis

Selecting the proper CNC machining process is one of the most critical early decisions for custom-manufactured metal parts. Choosing incorrectly may lead to higher costs, longer lead times, unsatisfactory surface finish, or tolerance failures. Many design and procurement engineers struggle to tell when to use milling versus turning, or whether 3-axis milling is sufficient instead of investing in 5-axis capabilities. This guide breaks down core characteristics, pros and cons, typical use-cases, and practical selection rules to help you make cost-effective manufacturing decisions for your project.

CNC Milling vs CNC Turning: Core Working Principles

CNC milling and CNC turning are the two foundational subtractive manufacturing methods for custom metal components, and their biggest difference lies in which element rotates during cutting.

In CNC milling, the cutting tool spins at high speed while the workpiece stays clamped and stationary. Cutting tools travel along X, Y, Z axes to remove material, creating slots, pockets, holes, engraved patterns, and irregular 3D geometries. Milling excels at prismatic, block-shaped parts with non-symmetrical features. It supports diverse materials including aluminum, stainless steel, titanium, brass and engineering plastics, and is widely used for brackets, equipment housings, mold cavities, and robotic structural components. Its main drawbacks include lower efficiency for purely round rotary parts, longer CAM programming preparation for complex geometry, and accelerated tool wear when machining hard alloys.

CNC turning, by contrast, spins the workpiece in a chuck against stationary cutting inserts. It is purpose-built for rotationally-symmetric components such as shafts, bolts, bushings, pipe fittings, and motor axles. Turning delivers excellent circular accuracy and smooth surface finish for cylindrical features. Setup and cycle times are generally faster than milling for round-shaped workpieces, which helps reduce unit cost for medium-volume orders. However, turning cannot efficiently produce flat, angular or asymmetric complex profiles. If your part contains both rotary and non-rotary features, manufacturers often combine turning with secondary milling operations.

3-Axis Milling vs 5-Axis Milling

Both 3-axis and 5-axis belong to CNC milling technology, but they differ dramatically in tool movement freedom, setup requirements and feasible part complexity.

3-axis milling allows the cutting tool to move only along three linear X-Y-Z directions. The workpiece remains fixed without tilting or rotating. It is the most common, cost-effective milling solution for flat plates, simple housings, mounting blocks, and parts with features accessible from top and side directions. Programming is relatively simple, machine hourly rates are competitive, and most CNC workshops can deliver reliable results. The major limitation is multi-face parts need manual re-clamping and re-positioning.

Every new setup introduces potential positioning errors, increases total processing time, and raises risks for tight-tolerance assemblies. Deep cavities may require extra-long cutting tools that cause vibration, chatter marks and poor surface quality.

5-axis CNC machining enables the cutting tool or worktable to tilt and rotate in two additional rotary axes alongside X-Y-Z linear movements. This permits tools to approach workpiece surfaces from nearly any angle. The most prominent advantage is single-setup machining: many multi-face, curved or angled features can be completed without unclamping the component. It reduces cumulative positioning errors caused by repeated re-fixturing, shortens overall lead-time, and extends tool service life by using shorter, more rigid cutters. 5-axis produces superior surface finish for free-form curved surfaces, making it indispensable for aerospace turbine parts, medical implant components, complex mold inserts, and AI liquid-cool cavity parts.

Nevertheless, 5-axis machining comes with trade-offs. Machine investment, CAM programming difficulty and hourly processing costs are significantly higher. Skilled programmers are required to simulate tool paths and prevent tool-to-workpiece collision. For simple prismatic parts with only top-side features, 5-axis will not bring tangible quality improvement and only creates unnecessary extra expenses.

Practical Guide: How to Pick the Right Process for Your Custom Parts

You can follow four practical dimensions to evaluate your component before submitting RFQ to CNC suppliers.

First, start with part geometry. Use CNC turning if your core features are cylindrical and rotation-symmetric. Select CNC milling for square, block-shaped, irregular or asymmetric structures. For milled parts: stick to 3-axis milling when most features can be accessed within two or three clamping operations. Move to 5-axis milling when your design contains continuous free-form curves, deep angled pockets, undercuts, or critical dimensions distributed across 4 or more faces.

Second, evaluate tolerance and surface-finish targets. Both milling and turning can achieve tight tolerances down to ±0.005 mm for well-controlled features. If consistent accuracy across multiple faces is critical, 5-axis single-setup processing minimizes cumulative fixture error. For curved surfaces, 5-axis optimizes tool contact angles and avoids chatter marks to deliver smoother surfaces with less manual post-polishing work.

Third, consider production volume and budget. 3-axis milling and turning provide better cost performance for high-volume simple-geometry batches. 5-axis is more economically attractive for low-to-medium-volume complex prototypes and custom components, where savings on fixture, rework and inspection offset higher hourly machine rates.

Fourth, review material difficulty. Hard-to-machine materials like titanium alloy and stainless steel benefit from 5-axis’s optimized tool orientation to reduce tool deflection and cutting vibration.

Conclusion: No Universal “Best” Process, Only the Most Suitable One

There is no single CNC process superior in every scenario. Turning is optimal for rotary-symmetric parts; 3-axis milling remains the workhorse for most standard prismatic custom metal parts. 5-axis machining unlocks high-precision complex geometries but should only be adopted when part complexity truly justifies its higher programming and manufacturing costs.

When preparing your RFQ, sharing complete CAD/STEP drawings together with tolerance requirements, target surface finish, material specification and production volume helps your CNC partner recommend the most reasonable manufacturing route. If you are uncertain which process fits your design, our engineering team can offer free DFM feedback and process evaluation. Upload your drawing today and get your competitive custom CNC quotation within 24 hours.

FAQs

Q1: Can one part use both turning and milling processes?

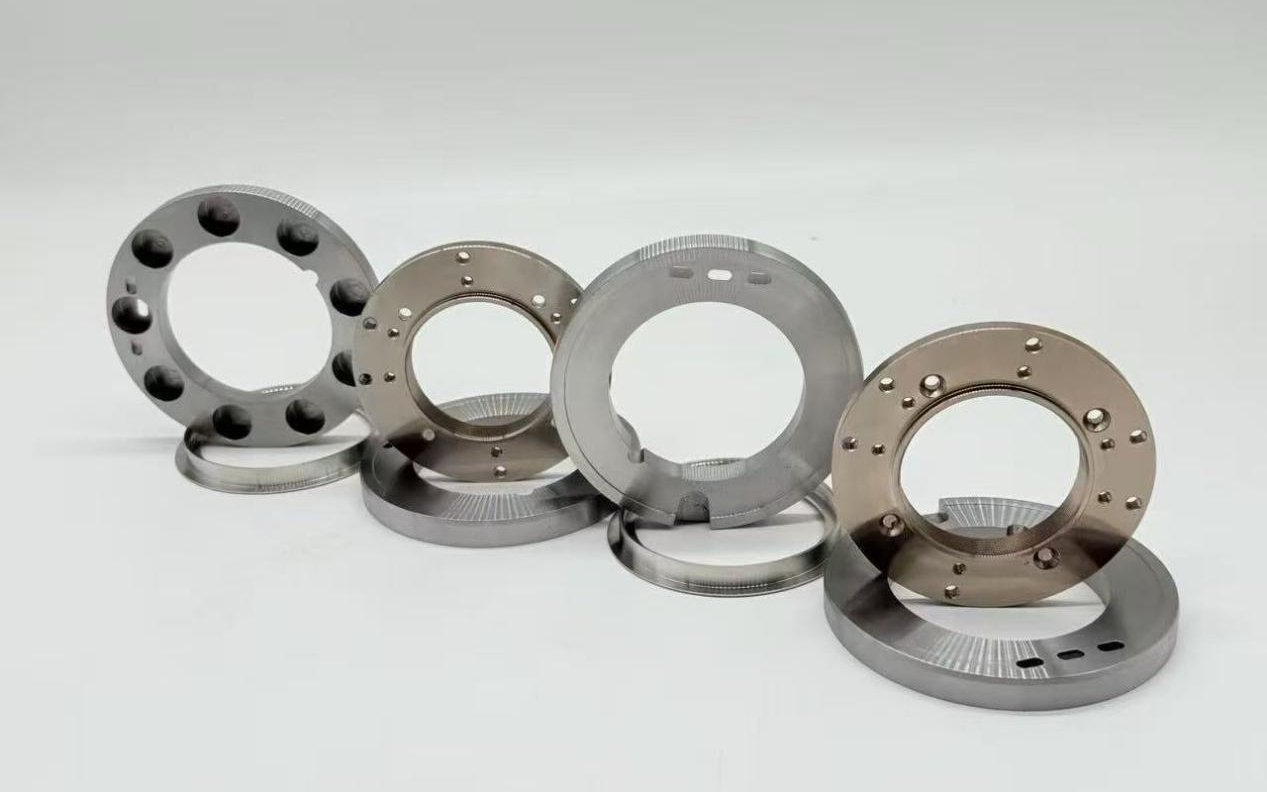

A: Yes. Many mechanical components contain both cylindrical rotary features and prismatic milled features. Manufacturers often perform turning first, then conduct secondary milling operations to finish non-round structures.

Q2: Does every complex-looking part require 5-axis machining?

A: Not necessarily. Some multi-face parts can still be produced economically on 3-axis machines via multiple setups, provided tolerances can tolerate small positioning deviations. Your supplier’s DFM review will help you balance cost and manufacturability.

Q3: What file formats should I provide for process evaluation?

 A: STEP or IGES 3D files plus 2D dimensioned PDF drawings are preferred, enabling engineers to check geometry, tolerance and select proper machining workflows.
