Consumer Electronics Housing Manufacturing: How to Achieve iPhone-Level Surface Smoothness

In the competitive consumer electronics industry, surface finish is not merely an aesthetic indicator but a core benchmark that defines product grade, user touch experience, and market competitiveness. iPhone’s iconic ultra-smooth, fingerprint-resistant, and scratch-proof housing surface has long set the global gold standard for consumer electronics shell manufacturing. For OEM/ODM manufacturers specializing in consumer electronics housing production, replicating and stabilizing iPhone-level surface smoothness is the key to winning high-end brand orders and breaking through low-end homogeneous competition. This article deeply analyzes the core processes, key technical standards, and precise control solutions for achieving iPhone-grade surface finish for metal, glass, and composite electronic housings.

1. Core Standard Definition of iPhone-Level Surface Smoothness

Different from ordinary consumer electronic shells with a roughness of Ra 0.8–1.6μm, iPhone-grade surface finish requires strict micron-level precision control, covering dimensional accuracy, surface roughness, texture uniformity, and functional durability. The core technical indicators are unified and stable across iPhone 15/16/17 series:

- Surface roughness: Strictly controlled below Ra 0.4μm for matte metal frames and ultra-fine glass back panels, achieving a delicate frosted texture without particle graininess;

- Visual effect: Zero scratches, zero orange peel, zero color difference, uniform light reflection, no glare, and consistent texture across the entire shell;

- Functional performance: Excellent anti-fingerprint, anti-oil, and anti-scratch capabilities, with 3 times higher scratch resistance than ordinary coatings, and no residual oil stains after daily wiping;

- Touch experience: Balanced smoothness and friction, no stinging hands, no sticky oil feeling, maintaining long-term hand feel stability after long-term use.

This high-standard finish is not achieved by a single polishing process but relies on full-process precision control from raw material selection, CNC precision machining, surface pretreatment, fine polishing to nano-coating finishing.

2. Key Manufacturing Challenges for iPhone-Level Surface Finish

Most ordinary electronic shell manufacturers struggle to reach Apple’s standard due to uncontrollable details in the production process, which leads to defective problems such as uneven surface texture, tiny tool marks, poor anti-fingerprint durability, and inconsistent batch consistency. The core challenges are summarized as follows:

First, raw material base uniformity deviation. High-end electronic housings mostly adopt aerospace-grade aluminum alloy, high-alumina silicon glass, and super crystal materials. Material hardness, density, and internal micro-defects directly affect the post-processing finish. Ordinary raw materials have uneven internal stress, which causes local polishing differences and tiny depressions on the surface.

Second, CNC machining trace residue. Precision drilling, milling, and trimming will leave micron-level tool marks and burrs on the surface. If the tool path and cutting parameters are not optimized, residual tool lines will penetrate the subsequent polishing layer, resulting in inconsistent surface gloss.

Third, unstable fine polishing precision. Manual polishing is prone to uneven force and over-polishing, while ordinary mechanical polishing cannot achieve uniform micro-abrasion, easily causing local thin layers and light difference defects.

Fourth, coating adhesion and uniformity defects. Ordinary spray coating and electroplating processes form uneven film layers, with poor adhesion, leading to easy peeling, fingerprint residue, and reduced gloss after long-term use.

3. Full-Process Solutions to Achieve iPhone-Grade Surface Smoothness

3.1 High-Precision Raw Material Screening and Preprocessing

We adopt Apple-certified high-purity raw materials, including 6061/7000 series high-strength aluminum alloy, high-alumina silicon glass, and upgraded super crystal shield materials. All raw materials undergo strict stress relief and flatness calibration before production to eliminate internal micro-stress and surface flatness deviation. For metal blanks, we implement low-oxygen environment storage and cutting to avoid surface oxidation and impurity adsorption, laying a flat and uniform foundation for subsequent surface finishing.

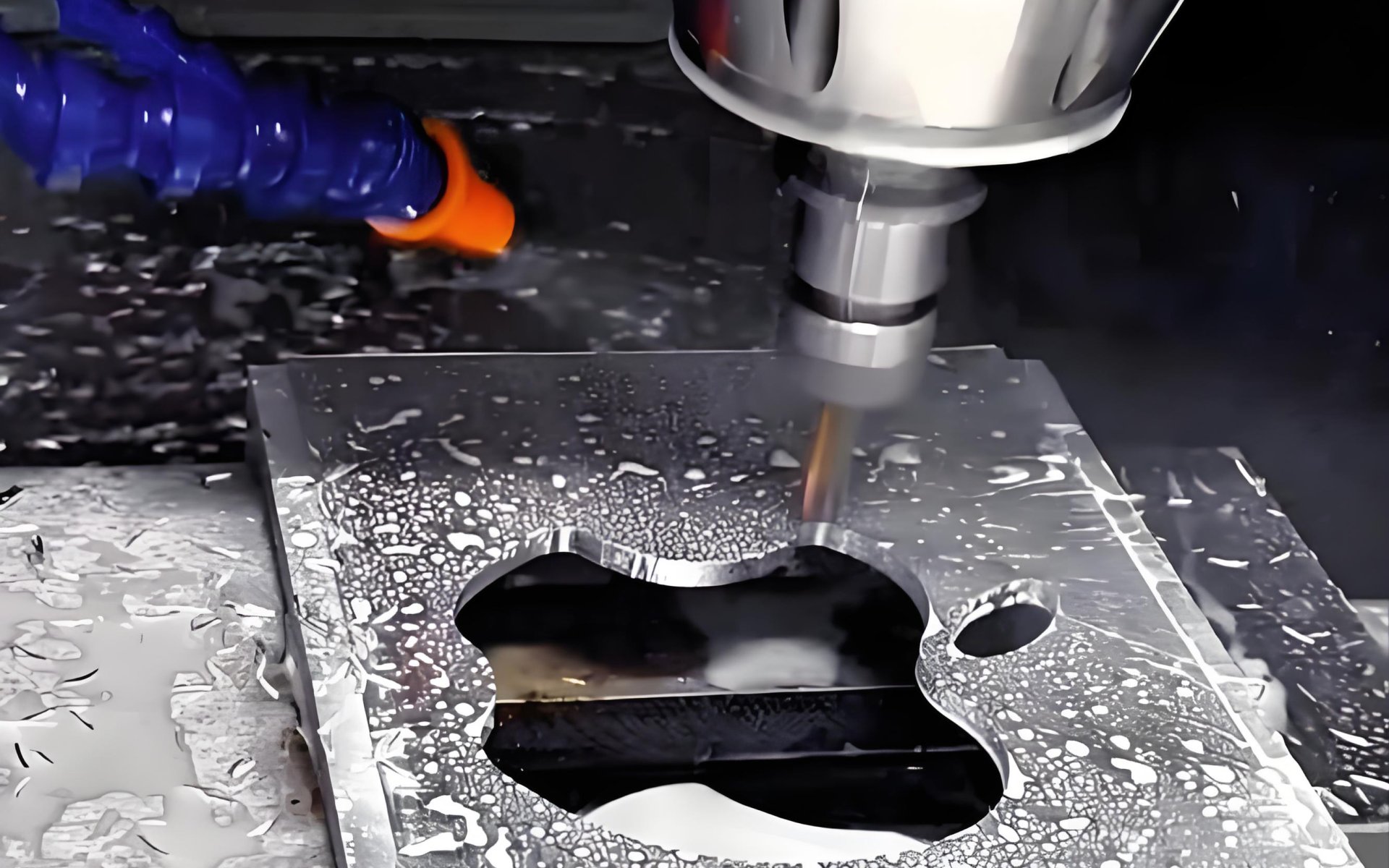

3.2 Optimized CNC Precision Machining to Eliminate Macro and Micro Traces

Adopting 5-axis linkage high-precision CNC equipment, we customize exclusive tool path parameters for electronic shell profiling, hole digging, and edge trimming. We use ultra-fine grain tungsten steel cutters with low wear and high smoothness, and match graded cutting parameters: high speed and low feed for finish machining, which effectively reduces cutting heat and tool mark residue. After machining, we conduct secondary deburring and micro-level trimming to ensure zero macroscopic burrs and micron-level flatness of the shell surface.

3.3 Dual Fine Polishing Process: Precision Sandblasting + Chemical Etching

Drawing on the mature process of iPhone’s official supplier BYD Optical, we adopt a dual-stage surface finishing process to replace traditional single polishing. First, precision micro-sandblasting is used to form uniform micro-concave and convex structures on the surface, eliminating machining traces and forming a delicate matte base. Then, low-temperature chemical etching is carried out to modify the surface microstructure, further optimizing texture uniformity and avoiding the grainy feeling of ordinary sandblasting. This process ensures consistent surface roughness of the entire shell within Ra 0.2–0.4μm.

3.4 Plasma Surface Modification + Nano Anti-Fingerprint Coating

To achieve long-term stable smoothness and anti-fingerprint performance, we implement dual surface modification treatment. First, Ar/O₂ plasma activation treatment is used to increase the surface energy of the shell from 38mN/m to 62mN/m, greatly improving coating adhesion. Then, nano-silica sol ultra-thin coating is adopted, with 85℃ constant temperature curing to form a dense and uniform nano protective film. The film layer has a thickness of only 1.8–2.5μm, which does not affect the original hand feel, but can effectively isolate oil stains and sweat, reducing fingerprint residue rate by more than 90%. Compared with ordinary coatings, its scratch resistance and oxidation resistance are improved three times, realizing long-term non-fading gloss and non-sticky hand feel.

3.5 Strict Full-Item Testing and Batch Consistency Control

After finishing all processes, we conduct comprehensive testing in accordance with Apple’s industrial standards, including surface roughness testing, gloss uniformity detection, scratch resistance testing, fingerprint resistance testing, and high and low temperature aging testing. We adopt automated optical inspection (AOI) equipment to screen tiny defects that are invisible to the naked eye, ensuring zero defective products off the line. At the same time, we standardize all process parameters and equipment parameters to ensure consistent surface finish of products in different batches, meeting the mass production requirements of high-end consumer electronic brands.

4. Our Manufacturing Advantages

As a professional consumer electronics housing manufacturer, we have fully copied and upgraded the iPhone-grade surface finishing process, realizing full coverage of high-precision finishing for metal, glass, and composite material shells. From small-batch customized prototypes to large-scale mass production, we can stably deliver products with ultra-smooth surface, uniform texture, strong durability, and zero visual defects. We support customized surface gloss, texture effect, and color matching according to customer requirements, providing one-stop solutions for high-end consumer electronic equipment housings such as mobile phones, tablets, and wearable devices.
