5-Axis CNC Machining: Technology, Advantages & Custom Precision Machining Service

5-axis CNC machining represents the most advanced subtractive manufacturing technology for precision metal parts, widely used in aerospace, new energy vehicles, medical devices, robotics and mold production. Unlike standard 3-axis and 4-axis milling, 5-axis linkage allows cutting tools to reach workpieces from nearly all angles. It avoids repeated re-clamping, reduces tolerance errors, improves surface finish and shortens production cycles. This article covers core 5-axis types, key strengths, selection standards and our full-set custom machining service.

Basic Introduction to 5-Axis CNC Machining

Traditional 3-axis machines only move along X, Y and Z linear axes. 5-axis machining adds two rotary axes on top of linear movement to realize multi-angle synchronous cutting. Its biggest advantage is one-clamp complete machining. Complex parts with curved surfaces, undercuts, deep cavities and multi-angle holes can be fully finished without repositioning blanks. Supported by professional CAM programming, it produces smooth 3D contours, angled structures and integrated monolithic components. It fits single prototypes, small trial batches and large mass production for metals and engineering plastics.

Two Main 5-Axis Machining Modes

3+2 Indexed 5-Axis Machining

Rotary axes lock at fixed tilt angles during cutting, with only X/Y/Z axes moving. It works well for parts with separate inclined planes, angled holes and simple curved surfaces. With easy programming and stable cutting, it is ideal for auto structural parts, fixture bases and standard mold inserts.

Full Simultaneous 5-Axis Machining

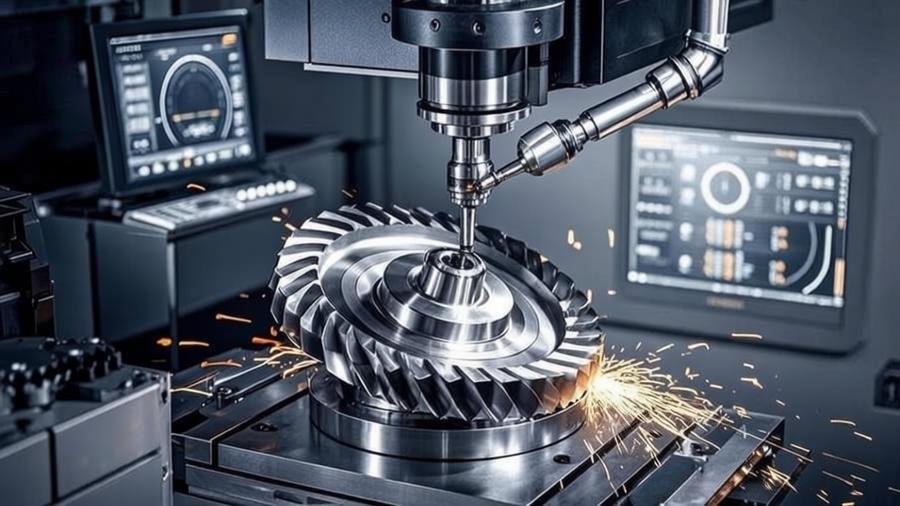

All five axes run synchronously in real time. Tools continuously adjust contact angles to fit free-form curved surfaces, deep undercuts and twisted profiles. It is the only choice for turbine blades, medical implants, impellers and complex mold cores, delivering ultra-smooth surfaces with no extra polishing needed.

Core Advantages Over 3-Axis & 4-Axis Milling

Conventional multi-setup milling creates accumulated positioning errors, while 4-axis equipment cannot access hidden undercuts. 5-axis CNC machining solves these problems with obvious benefits:

Higher overall precision: All processing uses one unified datum, cutting clamping errors by over 60%. Our machines maintain stable tight tolerances down to ±0.001mm, meeting strict medical and aerospace standards.

Process complex inaccessible structures: Tools tilt freely to machine deep cavities, internal undercuts and twisted outlines that 3/4-axis tools cannot reach, replacing multi-piece assemblies with integrated single parts.

Better surface finish & longer tool life: Tools keep optimal tangent contact with workpieces, reducing friction marks. Surface roughness can reach Ra 0.8μm; short rigid cutters lower vibration and tool wear by more than 30%.

Shorter production lead time: It eliminates repeated fixture adjustment and workpiece transfer, cutting total machining time by 30%–60% and speeding up prototype verification and mass delivery.

Strong material compatibility: Gentle linkage cutting reduces cutting force impact, suitable for hard-to-machine materials including titanium alloy, stainless steel, aluminum and easily deformed thin-wall blanks.

How to Decide Whether to Use 5-Axis Machining

Choose 5-axis processing based on three factors: part geometry, precision demands and material features.

Suitable part structures: 3D freeform surfaces, impellers, curved housings, deep undercuts, multi-angle inclined holes and thin-wall parts prone to deformation during multiple clamping.

Strict technical requirements: Composite multi-plane tolerances under ±0.01mm, smooth curved surfaces without secondary grinding, and aerodynamic key components with zero surface step marks.

Cost comparison: 5-axis is cost-effective for complex parts that require many re-clamping steps on 3-axis machines. For simple flat single-side parts, 3-axis milling remains cheaper to control manufacturing costs.

Processable Materials & Surface Finishes

Main Metals

Aluminum alloys (6061, 6063, 7075), SUS304/SUS316 stainless steel, titanium alloy, Inconel, brass and alloy steel.

Engineering Plastics

PEEK, POM, PC, nylon for lightweight precision structural components.

Available Surface Treatments

Anodizing, sandblasting, mirror polishing, passivation, nickel plating, black oxide, heat treatment and powder coating.

Our Professional 5-Axis CNC Custom Machining Service

We are an ISO9001 certified CNC machining factory equipped with complete 3-axis, 4-axis and high-precision simultaneous 5-axis CNC machining centers, offering one-stop custom solutions for global industrial buyers.

Free pre-order DFM analysis: Our engineers evaluate STEP, IGES, DXF and PDF drawings for free, optimizing tool paths to avoid processing dead angles and lower scrap risks.

Flexible production capacity: We support one-piece prototype sampling, small trial orders and large-batch mass production, with all internal processes including blank cutting, 5-axis milling, tapping and precision inspection.

Strict quality control: Every finished part undergoes full CMM dimensional inspection, with complete inspection reports attached to shipments to guarantee consistent batch accuracy.

Wide industry coverage: Our 5-axis machined parts are supplied to aerospace, new energy vehicles, medical orthopedic parts, robot joints, energy impellers and precision molds.

Flexible trade terms: We accept drawings or physical samples as production standards, support EXW, FOB Qingdao and DDP door-to-door delivery, with T/T and L/C payment available.

Final Takeaways

5-axis CNC machining breaks the geometric and precision limits of traditional milling, becoming the core manufacturing process for high-end complex precision parts. It not only realizes previously unworkable designs but also cuts total costs by reducing setup time, scrap rates and secondary processing.

With complete 5-axis equipment, mature CAM programming and strict quality management, our factory provides full-cycle custom 5-axis machining services. Whether you need rapid prototype development or stable mass production of complex metal parts, we can deliver high-precision finished products on schedule.

FAQs

Q1: What is the difference between 3+2 indexed 5-axis and simultaneous 5-axis machining?

A: 3+2 locks rotary axes for separate plane processing with high efficiency for simple angled features. Simultaneous 5-axis moves all axes together to machine continuous curved surfaces, required for impellers, organic contours and undercut structures.

Q2: Can your 5-axis machines process thin-wall titanium parts without deformation?

A: Yes. We apply low-stress adaptive tool paths and layered cutting parameters to reduce vibration and cutting stress, stabilizing dimensional consistency of thin-wall titanium and stainless steel components.

Q3: Is 5-axis machining only for mass production?

A: No. We accept single-piece prototypes. For complex parts needing multiple 3-axis setups, 5-axis one-time clamping even reduces overall costs for small batches by saving fixture labor and lowering scrap.
