Ultra-Clean Ultra-Precision CNC Machining for Semiconductor Equipment Vacuum Components

The Semiconductor Precision Barrier: CNC Machining for Vacuum Chambers & Wafer Handling Hardware

Global chip fabrication advances toward sub-3nm wafer production raises non-negotiable standards for semiconductor equipment mechanical parts. Vacuum chambers, wafer chucks, precision gas distribution manifolds and handling end-effectors form the core of etching, CVD and PVD processing tools, where microscopic surface defects, dimensional drift or internal contamination can contaminate entire 300mm wafer batches and erase millions in production yield. Unlike general CNC machined parts, semiconductor components demand dual mastery: micron-level geometric precision and ultra-clean, low-outgassing surface quality. Most overseas semiconductor OEM procurement teams focus on material certification and cleanroom assembly while overlooking foundational CNC machine performance indicators—spindle runout, positioning accuracy and repeat positioning accuracy—that directly determine vacuum tightness and particulate contamination risk. This article dissects the rigorous CNC precision machining requirements for semiconductor vacuum hardware, critical manufacturing challenges, and how calibrated ultra-precision machine tools eliminate costly wafer production failures.

1. Core Semiconductor CNC Components & Their Non-Negotiable Precision Rules

Two primary product categories dominate semiconductor equipment CNC machining, each with unique vacuum and cleanliness specifications:

Vacuum Chamber Bodies & Flange Assemblies

Vacuum chambers create ultra-high-vacuum (UHV) environments required for plasma wafer processing, with helium leak test thresholds as strict as ≤1×10⁻⁹ mbar·L/s. All internal machined surfaces must achieve Ra ≤0.4μm to minimize gas molecule adsorption and outgassing during operation. Critical flange sealing faces demand flatness ≤0.05mm, with every bolt hole position tolerance locked at ±0.005mm. Even minor spindle runout during flange face milling creates micro-undulations that break vacuum integrity after assembly. Standard chamber materials include 6061 aluminum and 316L stainless steel, both requiring burr-free CNC machining—loose metal shavings left inside cavities release particles that scratch wafer surfaces mid-production.

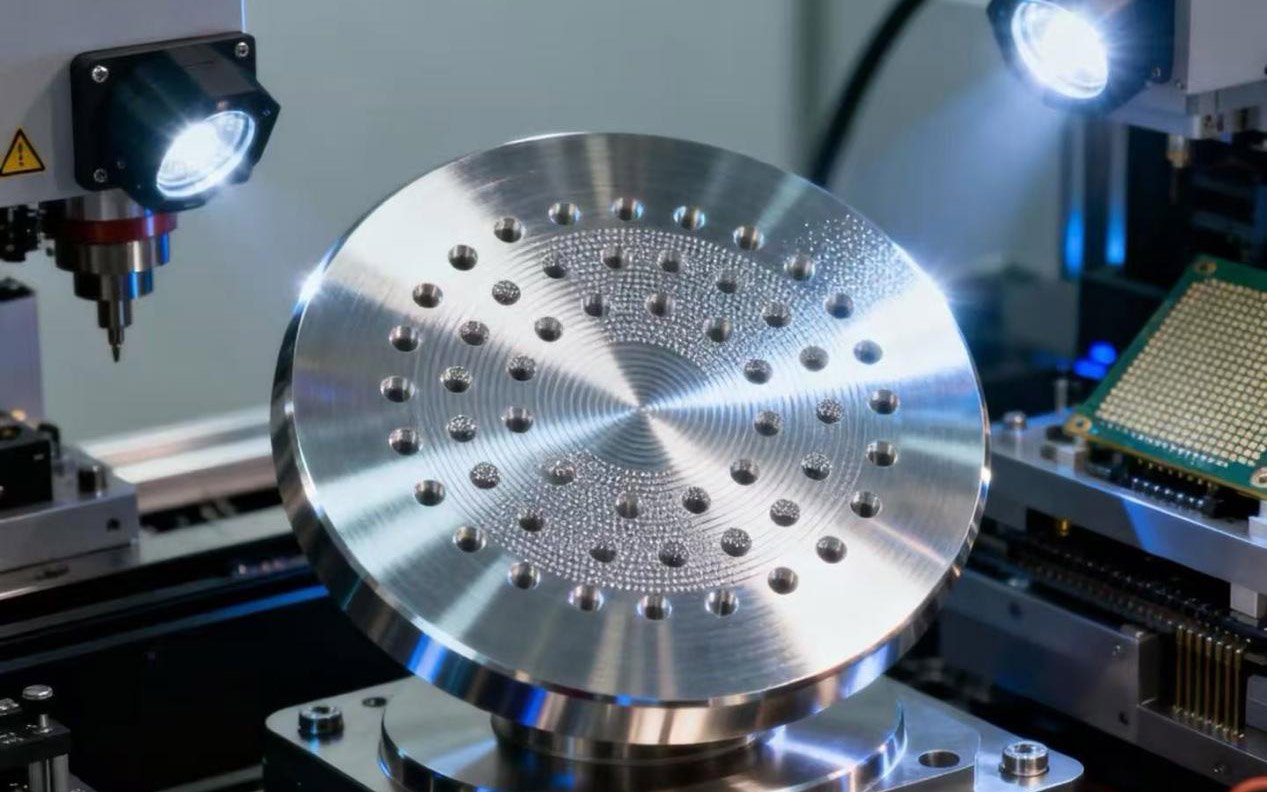

Wafer Chucks, Carriers & Precision Handling Fixtures

Wafer pedestals and vacuum chucks hold delicate silicon wafers during deposition and inspection, requiring ultra-flat contact surfaces with total thickness variation controlled within micrometers. Tiny vacuum suction holes, cooling microchannels and alignment pin features demand multi-angle five-axis machining; repeated re-clamping with three-axis equipment accumulates positioning errors that misalign wafer positioning, ruining lithography accuracy. Surface roughness on wafer contact areas must stay below Ra 0.2μm to avoid scratching fragile silicon substrates, with zero sharp burrs permitted on all edge geometries.

2. Three Foundational CNC Machine Metrics for Semiconductor Grade Machining

Semiconductor component manufacturing sets the strictest industry limits for the three core CNC precision indicators, acting as a filter to eliminate unqualified suppliers:

1. Spindle Runout ≤0.002mm (Mandatory for UHV Components) Internal chamber surfaces, sealing flanges and wafer contact planes require mirror-quality finishing without secondary manual polishing. Spindle radial runout exceeding 0.002mm generates periodic tool marks and micro-grooves on machined surfaces, increasing outgassing risk and preventing reliable vacuum sealing. Premium semiconductor CNC equipment utilizes ceramic hybrid spindle bearings and dynamic spindle balancing to maintain ultra-low runout during continuous 24-hour finishing cycles.

2. Positioning Accuracy ±0.003mm Maximum Tolerance Gas distribution manifolds feature complex intersecting internal flow channels and multi-port gas injection holes, where misaligned features disrupt uniform chemical gas dispersion across wafer surfaces. Laser interferometer calibrated five-axis machines deliver full-travel absolute positioning accuracy within ±0.003mm, ensuring every internal channel and external port aligns precisely to OEM design GD&T tolerances. Any deviation above ±0.005mm renders the manifold unusable for chip fabrication lines.

3. Repeat Positioning Accuracy ±0.002mm for Consistent Wafer Tool Spare Parts Semiconductor fabs operate continuous production lines requiring identical replacement chamber components and wafer chucks. Poor repeat positioning accuracy creates random dimensional inconsistency between spare parts, forcing costly tool recalibration every time hardware is swapped. Ultra-precision CNC machining cells maintain identical cutting paths for thousands of replacement components, eliminating line downtime caused by mismatched hardware geometry.

3. Unique CNC Machining Challenges for Semiconductor Vacuum Parts & Solutions

Challenge 1: Zero Contamination, Burr-Free Machining

Loose micro-burrs trapped inside chamber cavities detach under vacuum, creating wafer-killing particulate contamination. Standard high-spindle-wobble equipment leaves sharp edge burrs that require manual deburring—a process that introduces foreign lint and metal particles. Our five-axis CNC process utilizes ultra-fine finishing cutters paired with low-vibration spindle technology to produce burr-free edges in one pass, eliminating secondary hand processing entirely. All cutting fluids are semiconductor-grade low-particulate coolant to avoid surface residue.

Challenge 2: Complex Multi-Angle Internal Cavity Machining

Vacuum chambers feature undercut internal ports, cooling flow paths and stepped sealing shoulders inaccessible to three-axis machining without repeated fixture repositioning. Five-axis simultaneous CNC completes all internal and external geometry in a single workpiece setup, eliminating stacked clamping errors and preserving ultra-tight positioning tolerances across all chamber features.

Challenge 3: Thermal Deformation Disrupting Flatness

Long-duration milling of large aluminum chamber blanks generates thermal expansion that warps critical sealing flanges. Our CNC systems integrate real-time thermal error compensation sensors that adjust axis positioning dynamically based on machine temperature, holding flange flatness within 30μm even after 12 hours of continuous rough and finish machining. Post-machining vacuum stress relief further stabilizes geometry before surface electropolishing.

4. Supplier Machine Tool Qualification Checklist for Semiconductor Buyers

When auditing CNC component manufacturers for semiconductor equipment hardware, verify these precision thresholds aligned with production scope:

1. Standard transfer chamber parts: Spindle runout ≤0.005mm, positioning accuracy ±0.005mm, repeat positioning ±0.003mm, dedicated semi-cleanroom machining zones.

2. Critical process chamber & gas manifold hardware: 5-axis CNC with spindle runout ≤0.002mm, laser-calibrated positioning ±0.003mm, inline CMM full dimensional inspection for every batch.

3. Wafer chuck, end-effector and ultra-precision stage components: Custom ultra-precision machining centers with temperature-controlled machine enclosures, surface roughness testing for every contact surface.

Closing Insight

Semiconductor manufacturing’s zero-tolerance contamination and vacuum standards make CNC spindle runout, positioning accuracy and repeat positioning accuracy non-negotiable supplier qualification criteria. Glossy product datasheets cannot replicate verified laser testing results of core machine precision metrics—only equipment with proven ultra-tight precision output can reliably produce vacuum chambers, wafer fixtures and manifolds that meet fab UHV and cleanliness rules. Our factory operates a dedicated semiconductor CNC workshop with certified five-axis ultra-precision machines, full cleanroom packaging, electropolishing surface treatment and complete helium leak testing documentation for all vacuum hardware.

If you require certified CNC machining for semiconductor equipment vacuum components or wafer handling fixtures, share your STEP/PDF drawings to receive full FAI inspection reports and batch production quotations.
