Anodizing Aluminum Parts: Types, Colors, Defects & Design Notes

Anodizing stands as one of the most widely-used surface finishing solutions for custom CNC-machined aluminum parts. Beyond delivering decorative color options, this electrochemical treatment significantly improves aluminum’s corrosion resistance, surface hardness, and wear performance. For design engineers and procurement specialists working on CNC prototypes and mass-produced components, understanding anodizing types, available color ranges, common defects and critical design considerations is essential to avoid costly rework and achieve consistent finished quality. This guide covers everything you need to know before specifying anodizing for your next aluminum CNC project.

What Is Aluminum Anodizing?

Anodizing is an electrochemical conversion process rather than a coating application. When aluminum parts are submerged in specialized electrolyte solution under controlled electric current, a stable, porous aluminum oxide layer grows from the base metal surface, instead of being sprayed or plated onto the workpiece. This oxide layer bonds metallurgically with the aluminum substrate and cannot peel or flake off like paint or powder coating.

For CNC-machined aluminum components, anodizing is normally performed after all machining, deburring and edge finishing steps. Machining marks, surface scratches and tool chatter will still show through thin anodizing films, so base surface quality directly determines your final visual result. Common aluminum alloys for anodizing include 6061-T6 and 6063; 7075 aluminum can also be anodized but yields less consistent color appearance compared with 6-series alloys.

Main Types of Aluminum Anodizing

Three primary anodizing variants dominate custom CNC manufacturing, each with distinct layer thickness, performance and cost characteristics.

Type II: Decorative Sulfuric Acid Anodizing

Type II sulfuric acid anodizing is the most common option for general-purpose custom aluminum parts, producing oxide film thickness typically between 5 μm to 12 μm. It delivers balanced corrosion resistance and enables vibrant dye coloring. It fits consumer electronics housings, automation brackets, fixture components and general industrial prototypes. While it offers good everyday anti-corrosion performance, it is not suitable for harsh outdoor or highly corrosive working environments.

Type III: Hardcoat Anodizing (Hard Anodizing)

Hardcoat anodizing, or Type III anodizing, creates a much thicker oxide layer ranging from 20 μm up to 50 μm under low-temperature processing conditions. This finish drastically boosts surface hardness and abrasion resistance. Hardcoat is preferred for moving mechanical parts, sliding components, hydraulic assemblies and equipment exposed to heavy wear. One trade-off is limited color selection; hardcoat mostly comes in black or dark grey, and bright decorative colors are difficult to achieve. It also causes greater dimensional growth on part surfaces, which designers must account for in CAD drawings.

Clear Anodizing

Clear anodizing uses the same sulfuric-acid bath as Type II but skips dye immersion. It keeps the natural metallic silver look of aluminum while adding protection against oxidation and mild corrosion. Clear anodizing is ideal when you want to retain the raw metal appearance of CNC-machined parts without introducing tinted colors.

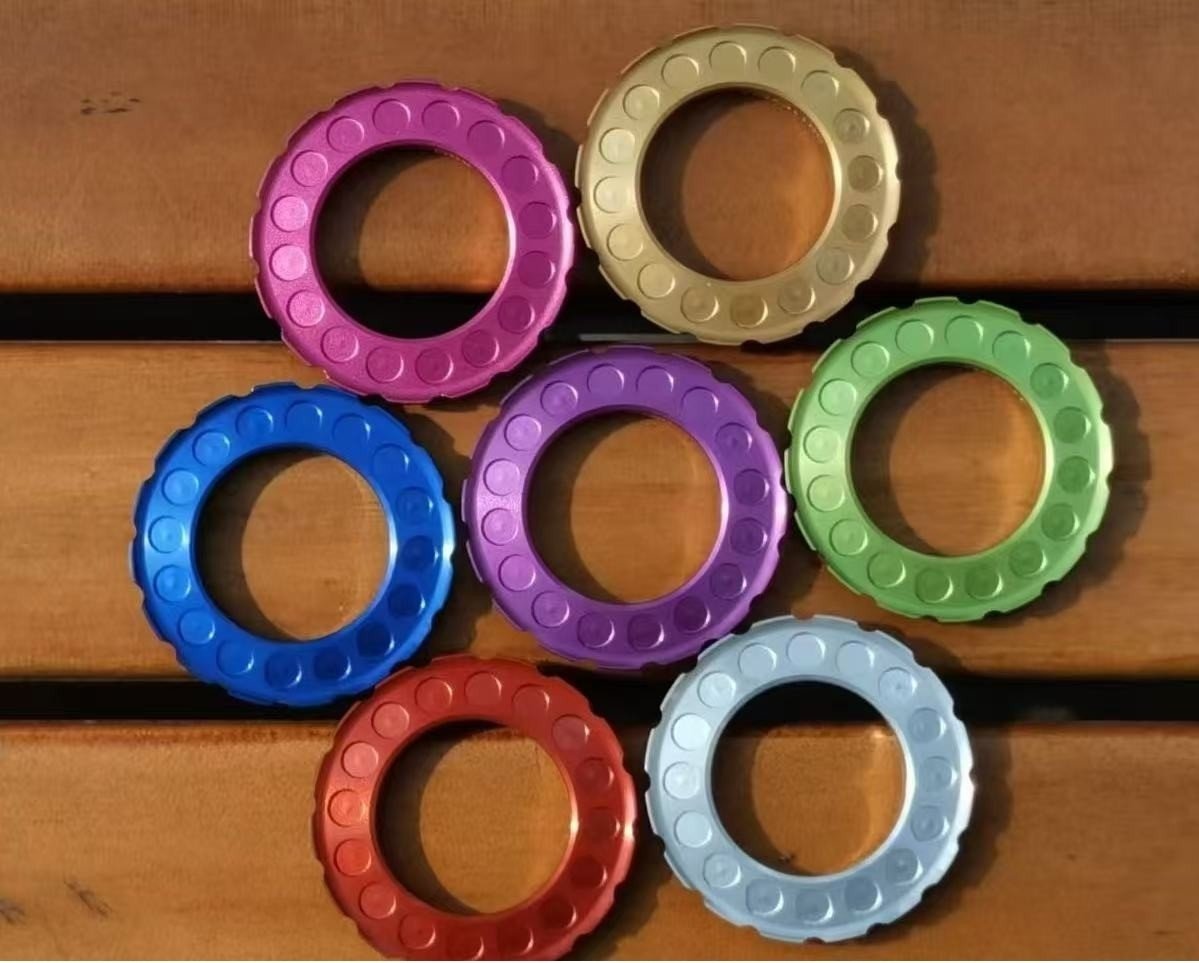

Available Colors for Anodized Aluminum Parts

Dye absorption happens within the porous oxide layer formed during anodizing before final sealing. Color consistency is heavily influenced by aluminum alloy, surface texture and film thickness.

Common stocked colors include black, natural clear, red, blue, gold, and dark grey. Black is the most popular for industrial CNC components due to excellent dye uptake and stable performance. Lighter bright colors such as gold and red are more sensitive to minor material differences; color variation can appear across different production batches, especially on mixed-alloy orders.

Note that hardcoat Type III anodizing largely restricts you to dark tones. Bright, vivid colors are not practical for hard-anodized parts. If uniform color appearance is critical for your project, stick to 6061 or 6063 aluminum and inform your CNC supplier about color reference samples.

Common Anodizing Defects and Root Causes

Even with precise aluminum CNC machining, several typical defects may emerge during anodizing, many of which originate in part design, alloy choice or pre-processing.

Color variation and uneven dyeing frequently occur when mixing different aluminum alloys in one batch. 7075 contains higher copper content and tends to produce duller color compared to 6061. Non-uniform surface roughness left by milling tools also creates patchy color results.

Bleach-out or faded areas appear if parts stay too long in the sealing bath or when local current density fluctuates on complex geometries with deep cavities, sharp internal corners or thin-wall sections.

Burn marks and surface pitting are caused by improper current parameters, contaminated electrolyte, or sharp burrs remaining from CNC milling. Burrs create electrical hot spots that damage the oxide layer. Thorough deburring before anodizing is mandatory.

Seal failure reduces corrosion resistance. Poor sealing happens due to incorrect bath temperature or insufficient sealing time. This defect may not be visible visually but will lead to early corrosion in field use.

Designers should understand that anodizing will not hide deep scratches, tool lines or chatter marks from CNC milling. Those imperfections remain visible after finishing, so surface quality must be controlled at the machining phase.

Key Design Notes for CNC-Machined Aluminum Before Anodizing

Anodizing adds material thickness on all exposed surfaces. Designers need to reserve proper dimensional allowance in your original CAD files. For Type II anodizing, expect roughly 5-12 μm growth per surface; Type III hardcoat can add 20-50 μm. If tight fit tolerances are required for holes or mating surfaces, specify post-anodizing re-milling or leave compensation for oxide build-up.

Avoid extremely sharp internal corners. Sharp edges concentrate electrical current during anodizing and risk burning or uneven oxide formation. Radius of at least R0.3 mm is recommended for internal features.

Threaded holes demand special attention. Standard internal threads will shrink after anodizing. If full thread engagement is critical, communicate with your CNC manufacturer: options include tapping oversized before finishing or applying thread masking during anodizing. Masking increases processing cost and lead time.

Surface texture specification matters. Brushed, bead-blasted or as-machined finishes create different final appearances after dyeing. Be sure to define surface requirements in your 2D drawing alongside tolerance notes, material grade and anodizing type.

Final Words

Anodizing is a versatile, durable finishing choice for custom CNC aluminum parts, balancing mechanical protection and visual customization. Select Type II colored anodizing for decorative indoor components, choose clear anodizing for natural metallic appearance, and specify Type III hardcoat for high-wear mechanical assemblies. Keep alloy limitations, dimensional growth, corner radii and hole treatment in mind at the design stage to prevent avoidable defects and delays.

If you are unsure which anodizing specification fits your aluminum CNC project, send over your STEP drawings and requirements. Our engineering team provides free DFM feedback for surface finishing, and we can deliver competitive quotations for prototype and volume orders within 24 hours.

FAQs

Q1: Will anodizing conceal CNC machining tool marks on aluminum?

A: No. Anodizing is a surface conversion layer; existing tool scratches and milling texture will remain visible. Improve base-part surface finish before anodizing for better visual results.

Q2: Can 7075 aluminum be anodized to bright consistent colors?

A: 7075 supports anodizing, yet its high-copper composition leads to less uniform dye uptake. For strict color consistency, 6061-T6 or 6063 are preferred.

Q3: Do holes and threads need special consideration for anodized aluminum parts?

A: Yes. The oxide layer reduces hole diameter and thread clearance. Masking or pre-compensated tapping should be discussed with your CNC supplier for mating threads.
